As a leading supplier of Conductive Foam, I often encounter various questions from customers regarding its properties and applications. One question that comes up frequently is, "What is the dielectric strength of conductive foam?" In this blog post, I'll delve into this topic, providing a comprehensive understanding of dielectric strength and how it relates to conductive foam.
Understanding Dielectric Strength
Before we explore the dielectric strength of conductive foam, it's essential to understand what dielectric strength is. Dielectric strength is a measure of the electrical insulating properties of a material. It represents the maximum electric field that a material can withstand without breaking down and allowing current to flow through it. In simpler terms, it's the point at which an insulating material turns into a conductor under the influence of a strong electric field.
Dielectric strength is typically expressed in volts per unit thickness, such as volts per millimeter (V/mm) or kilovolts per centimeter (kV/cm). A higher dielectric strength indicates that a material can withstand a stronger electric field before breaking down, making it a better insulator.
Dielectric Strength of Conductive Foam
Conductive foam is a unique material that combines the properties of a foam structure with electrical conductivity. It is commonly used in applications where electromagnetic shielding, grounding, or electrostatic discharge (ESD) protection is required. Unlike traditional insulating materials, conductive foam is designed to conduct electricity, which means its dielectric strength is relatively low compared to insulators.
The dielectric strength of conductive foam depends on several factors, including the type of conductive material used, the foam's density, and its thickness. Generally, conductive foams are made by impregnating or coating a foam substrate with a conductive material, such as carbon, metal particles, or a conductive polymer. The conductive material provides the electrical conductivity, while the foam structure offers flexibility and cushioning.
In most cases, the dielectric strength of conductive foam is in the range of a few hundred volts per millimeter to a few thousand volts per millimeter. This is significantly lower than the dielectric strength of insulating materials like glass, ceramic, or plastic, which can have dielectric strengths in the tens of thousands of volts per millimeter.
Factors Affecting the Dielectric Strength of Conductive Foam
1. Conductive Material
The type and amount of conductive material used in the foam have a significant impact on its dielectric strength. Foams impregnated with metal particles, such as silver or copper, tend to have lower dielectric strengths compared to those coated with a conductive polymer. This is because metal particles provide a more direct path for current flow, making it easier for the material to break down under an electric field.
2. Foam Density
The density of the foam also affects its dielectric strength. Higher density foams generally have lower dielectric strengths because they have more conductive material per unit volume, which increases the likelihood of current flow. Conversely, lower density foams have higher dielectric strengths because they have less conductive material and more air spaces, which act as insulators.
3. Thickness
The thickness of the conductive foam is another important factor. Thicker foams generally have higher dielectric strengths because they provide more resistance to the flow of current. However, increasing the thickness also increases the cost and weight of the material, so a balance must be struck between dielectric strength and other factors such as cost and performance.
Applications of Conductive Foam Based on Dielectric Strength
Despite its relatively low dielectric strength, conductive foam has a wide range of applications in various industries. Some of the common applications include:
1. Electromagnetic Shielding
Conductive foam is widely used for electromagnetic shielding in electronic devices. It helps to prevent electromagnetic interference (EMI) and radio frequency interference (RFI) by absorbing and dissipating electromagnetic waves. In this application, the low dielectric strength of conductive foam is not a significant concern because the primary function is to conduct electricity and provide a path for the electromagnetic waves to be grounded.
2. Electrostatic Discharge (ESD) Protection
Conductive foam is also used for ESD protection in sensitive electronic components. It helps to prevent static electricity from building up and damaging the components by providing a conductive path for the static charge to dissipate. Similar to electromagnetic shielding, the low dielectric strength of conductive foam is not a major issue in ESD protection applications.
3. Grounding
Conductive foam can be used as a grounding material in electrical systems. It provides a reliable and flexible connection between different components, ensuring that electrical charges are safely discharged to the ground. In grounding applications, the dielectric strength of conductive foam is not critical as long as it can conduct electricity effectively.
Comparing Conductive Foam with Other Materials

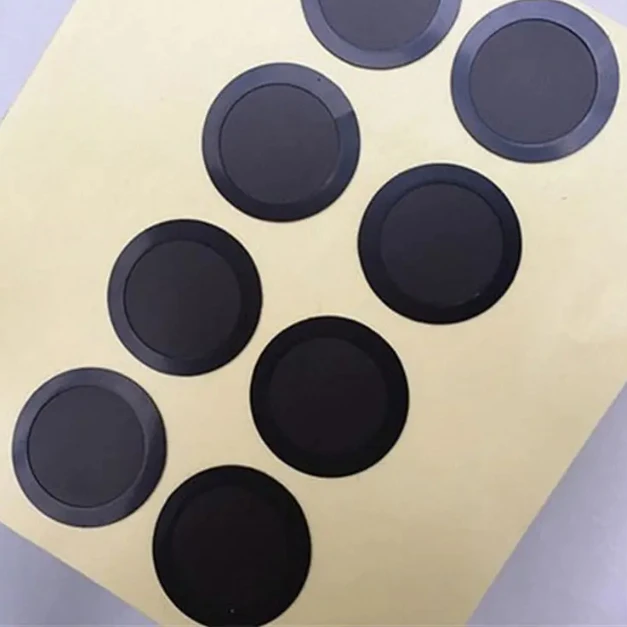

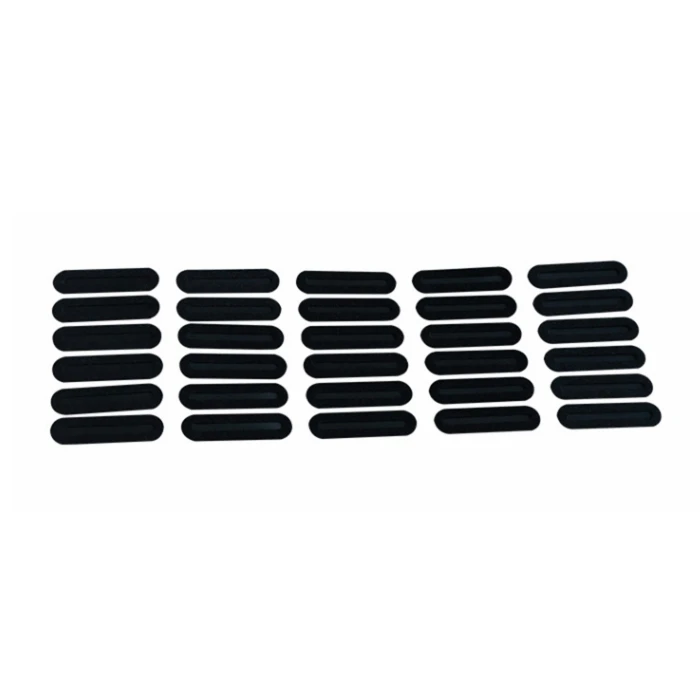

When considering the dielectric strength of conductive foam, it's helpful to compare it with other materials commonly used in similar applications. For example, Waterproof Breathable Membrane is often used in applications where water resistance and breathability are required. While it may have good insulating properties, it is not designed for electrical conductivity. On the other hand, Die Cut Aluminum Foil Tape is a highly conductive material but may not have the flexibility and cushioning properties of conductive foam.
In summary, each material has its own unique properties and advantages, and the choice of material depends on the specific requirements of the application. Conductive foam offers a good balance between electrical conductivity, flexibility, and cushioning, making it suitable for a wide range of applications.
Importance of Dielectric Strength in Conductive Foam Selection
When selecting conductive foam for a particular application, it's important to consider the dielectric strength along with other factors such as electrical conductivity, flexibility, and cost. If the application involves high voltage or requires a high level of electrical insulation, a conductive foam with a higher dielectric strength may be necessary. However, if the primary function is electromagnetic shielding or ESD protection, a lower dielectric strength may be acceptable.
It's also important to note that the dielectric strength of conductive foam can vary depending on the manufacturer and the specific product. Therefore, it's recommended to consult with a knowledgeable supplier, like us, to ensure that you select the right conductive foam for your application.
Conclusion
In conclusion, the dielectric strength of conductive foam is an important property that affects its performance in various applications. While conductive foam generally has a lower dielectric strength compared to insulating materials, it offers other advantages such as electrical conductivity, flexibility, and cushioning. By understanding the factors that affect the dielectric strength of conductive foam and considering it in the selection process, you can ensure that you choose the right material for your specific needs.
If you're interested in learning more about conductive foam or other Conductive Foam products, or if you have any questions regarding dielectric strength or other properties, please feel free to contact us. We're here to help you find the best solutions for your applications.
