As a seasoned supplier of Die Cut Graphite Sheets, I'm thrilled to take you through the intricate manufacturing process of these essential components. Die Cut Graphite Sheets are widely used in various industries due to their excellent thermal conductivity, electrical conductivity, and chemical resistance. In this blog, I'll share the step-by-step process of how we transform raw graphite into precision-cut sheets that meet the diverse needs of our customers.
Step 1: Raw Material Selection
The first and most crucial step in the manufacturing process is the selection of high-quality raw graphite material. Graphite is a naturally occurring form of carbon with unique properties that make it ideal for a wide range of applications. We source our graphite from trusted suppliers who adhere to strict quality control standards. The purity, density, and grain size of the graphite are carefully considered to ensure that the final product meets the required specifications.
Step 2: Graphite Sheet Formation
Once the raw graphite material is selected, it is processed into sheets. There are several methods for forming graphite sheets, including rolling, extrusion, and compression molding. At our facility, we primarily use the rolling method, which involves passing the graphite through a series of rollers to reduce its thickness and increase its density. This process ensures that the graphite sheets have a uniform thickness and density, which is essential for achieving consistent performance.
Step 3: Die Cutting
After the graphite sheets are formed, they are ready for die cutting. Die cutting is a process that uses a die, or a specialized cutting tool, to cut the graphite sheets into the desired shape and size. There are several types of die cutting methods, including flatbed die cutting, rotary die cutting, and laser die cutting. At our facility, we use a combination of flatbed and rotary die cutting methods to ensure that we can meet the diverse needs of our customers.
Flatbed die cutting is a traditional method that involves placing the graphite sheet on a flatbed press and using a die to cut the sheet into the desired shape. This method is ideal for cutting small to medium-sized parts with complex shapes. Rotary die cutting, on the other hand, is a continuous process that uses a rotating die to cut the graphite sheet as it passes through the machine. This method is ideal for cutting large volumes of parts with simple shapes.
Step 4: Quality Control
Once the graphite sheets are die cut, they undergo a rigorous quality control process to ensure that they meet the required specifications. Our quality control team uses a variety of inspection methods, including visual inspection, dimensional inspection, and performance testing, to ensure that the graphite sheets are free from defects and meet the required standards. Any parts that do not meet the specifications are rejected and recycled.
Step 5: Packaging and Shipping
After the graphite sheets pass the quality control process, they are ready for packaging and shipping. We use a variety of packaging materials, including plastic bags, cardboard boxes, and custom-made containers, to ensure that the graphite sheets are protected during transit. Our packaging is designed to prevent damage to the graphite sheets and to ensure that they arrive at our customers' facilities in perfect condition.
Applications of Die Cut Graphite Sheets
Die Cut Graphite Sheets are used in a wide range of applications, including electronics, automotive, aerospace, and energy. In the electronics industry, Die Cut Graphite Sheets are used as thermal management materials to dissipate heat from electronic components. In the automotive industry, Die Cut Graphite Sheets are used as gaskets and seals to prevent leaks and improve performance. In the aerospace industry, Die Cut Graphite Sheets are used as lightweight structural materials to reduce weight and improve fuel efficiency. In the energy industry, Die Cut Graphite Sheets are used as electrodes and fuel cell components to improve energy efficiency and reduce emissions.
Related Products

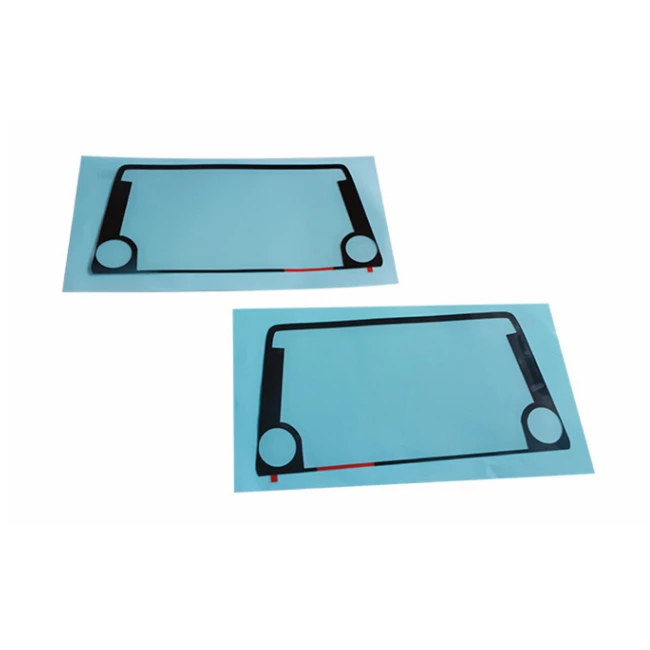

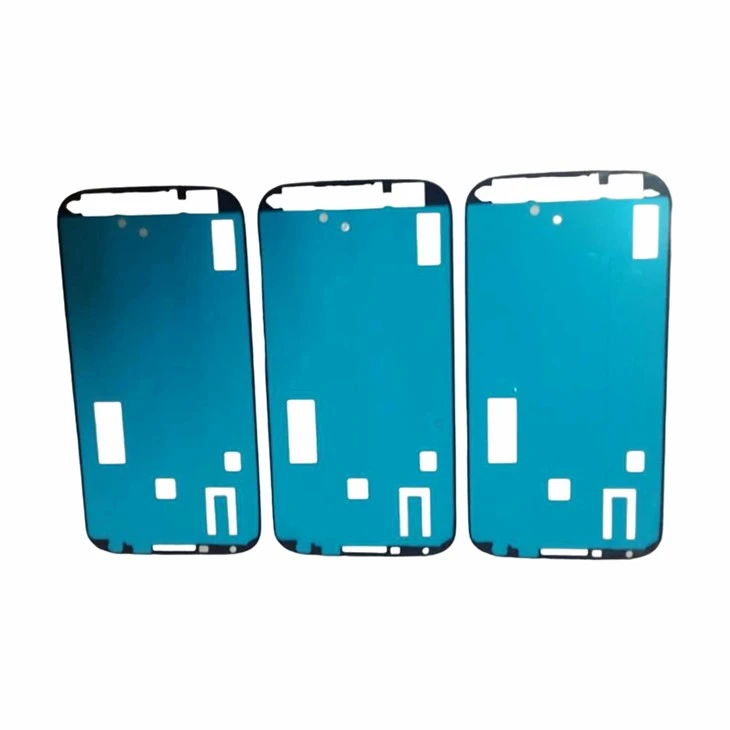

In addition to Die Cut Graphite Sheets, we also offer a wide range of related products, including Die Cut Aluminum Foil Tape and Frame Glue. Die Cut Aluminum Foil Tape is a versatile product that is used in a variety of applications, including thermal insulation, electromagnetic shielding, and moisture barrier. Frame Glue is a high-strength adhesive that is used to bond frames and other components together.
Contact Us for Procurement
If you're interested in learning more about our Die Cut Graphite Sheets or any of our other products, please don't hesitate to contact us. We have a team of experienced sales representatives who are ready to answer your questions and help you find the right products for your needs. Whether you're a small business or a large corporation, we can provide you with high-quality products at competitive prices. Contact us today to start the procurement process and take your business to the next level.
References
- "Graphite: Properties, Applications, and Production." Encyclopedia Britannica.
- "Die Cutting: A Comprehensive Guide." Precision Die Cutting Association.
- "Thermal Management Materials: Types and Applications." Thermal Management Solutions.
