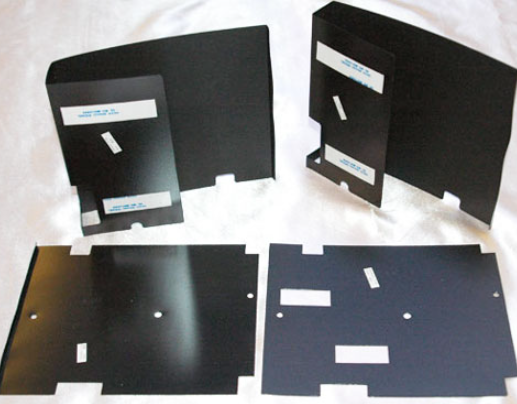

Product Name: PC (Polycarbonate) Insulation Sheet
Description:
PC Insulation Sheet is manufactured from high-quality polycarbonate resin, featuring outstanding electrical insulation properties, mechanical strength, and heat resistance. It is widely used as a structural insulating component in electronic and electrical assemblies.
Key Features:
High Dielectric Strength: Provides reliable electrical insulation to prevent short circuits and current leakage.
Flame Retardant: Rated UL94 V-0 or VTM-0, self-extinguishing and compliant with safety standards.
Excellent Dimensional Stability: Resists warping or shrinking under temperature fluctuations.
Good Chemical Resistance: Withstands exposure to oils, solvents, and common industrial chemicals.
Thin & Lightweight: Available in thicknesses ranging from 0.05mm to 1.5mm.
Easy Fabrication: Can be die-cut, punched, or laminated into custom shapes and sizes.
Typical Applications:
Power supply insulation barriers
PCB insulation spacers
Display panel backlight insulation
Battery cell separation in EV and energy storage systems
Motor and transformer insulation
Household appliance internal insulation
Technical Specifications (Reference):
| Parameter | Typical Value |
|---|---|
| Material | Polycarbonate (PC) |
| Flammability Rating | UL94 V-0 / VTM-0 |
| Thickness Range | 0.05 – 1.5 mm |
| Dielectric Strength | ≥ 17 kV/mm |
| Operating Temperature | -30°C to +120°C |
| Tensile Strength | ≥ 60 MPa |
Why Choose Our PC Insulation Sheet?
Our PC insulation sheets are manufactured under strict quality control, ensuring consistent thickness, flatness, and electrical performance. Custom die-cutting and lamination services are available to meet your specific design requirements.
